Basic Info.
Certification
ASTM, ISO9001, RoHS, CE
Hole Shape
Square
Frame Finishing
Not Coated
Surface Treatment
Galvanized
Weave Technique
Twill Weave
Product Name
Hinged Joint Fence
Zinc Coating
60-300g Per Square Meter
Tensile Strength
700-1300MPa
Wire Diameter
2.0-2.8mm
Type of Vertical Wire
Straight
Width
4feet,5feet,6feet,7feet and 8 Feet.
Length
50m or 100m
MOQ
80-100 Rolls
Coil Weight
45-60kg
Package
Standard Export Package(Details Pictures Is as Fol
Shipment
30-45 Days,According to Vessel Schedules
Main Market
Australia,Canada,America,Southeast Asia and So on.
Production Capacity18
10000 Rolls Per Month
Usage
Garden Fence, Farm Fence
Inner Wire Diameter
1.8-2.3mm
Transport Package
Plastic Film Then on Pallet
Specification
length 50-200m
Trademark
YISHUO
Origin
Xinji, Shijiazhuang, Hebei
Production Capacity
10000rolls/Month
Product Description
Product Description
1. Material: hot dip galvanized wire
2. Wire Gauge: 0.5-3.0mm
3. Standard: Yishuo Standard or customized
4. Certification: ISO9001
1. Material: hot dip galvanized wire
2. Wire Gauge: 0.5-3.0mm
3. Standard: Yishuo Standard or customized
4. Certification: ISO9001
| Product name | Game wire fence(Hinge joint fence, Deer fence, |
| Material | Low carbon iron wire,electro galvanized wire,hot dipped galvanized wire. |
| Zinc coating | 60-300g per square meter |
| Tensile strength | 700-1300MPA |
| Wire diameter | 2.0-2.8mm |
| Type of vertical wire | straight |
| Width | 4feet,5feet,6feet,7feet and 8 feet. |
| Length | 50m or 100m |
| MOQ | 80-100 rolls |
| Coil weight | 45-60kg |
| Package | Standard export package(details pictures is as follows) |
| Shipment | 30-45 days,according to vessel schedules |
| Main market | Australia,Canada,America,Southeast Asia and so on. |

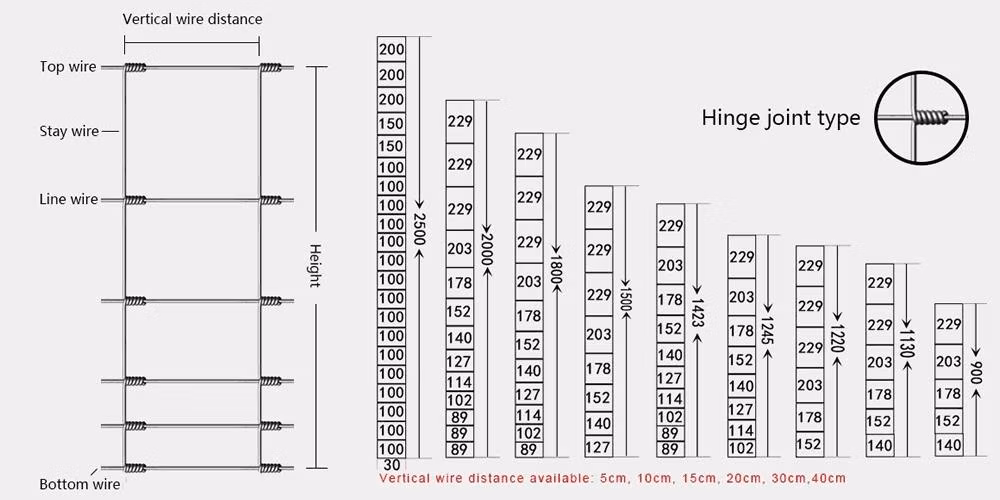

| No. | Item | Specification | The top and bottom wires diameter | The middle wires diameter | Roll diameter |
| 1. | 7/150/813/50 | 102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
| 2. | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 2.5 | 2.0 | 280 |
| 3. | 8/150/902/50 | 89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
| 4. | 8/150/1016/50 | 102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 |
| 5. | 8/150/1143/50 | 114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
| 6. | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
| 7. | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
| 8. | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 |
| 9. | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
| 10. | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
| Note: we can also produce the mesh according to the customers special requirements. | |||||
Detailed Photos
| Hinge joint knot The hinge joint knot is designed to use the vertical wires to wrap the horizontal wire at each junction, this style can reduce the crash well without injuring horse. It is the most common knot in filed fencing and is the economical and popular choice. | Fixed knot This knot also uses a separated wire to wrap the vertical and horizontal wire together, which increases the strength of the vertical wire. It is more stronger than square knot, so this knot can prevent the crash of livestock and resist snowstorm. | Square knot Square knot also called square deal knot or "S" knot, is designed to use a separated wire to fasten the filler and the vertical wire together. It can assure maximum strength and prevent the fence from buckling or sagging. This design forms a smooth surface to prevent fence from injuring horses. |
1.Height Range:0.6-2.45 meter available.
2.Vertical wire distance:50, 100, 150, 200, 250, 300, 350, 400mm available.
3.Length: 50 Meter. 100 Meter and 150 Meter available.
4.Wire Material Fininshing: Hot Dipped Galvanized, Electro Galvanized.
Application
Related products
| Y Post | |
| Market | Australia/New Zealand/ South America/Mid east |
| Surafce Treatment | Hot dipped galvanized/ Painting |
| Packing | 10pcs/bundle, 200pcs/pallet |
| Size | 1.58kg/m , 1.86kg/m , 1.90kg/m , 2.04kg/m |
| Popular Length | 0.45m | 0.60m | 0.90m | 1.35m | 1.50m | 1.65m | 1.80m | 2.10m | 2.40m |
| Holes New Zealand type | | | | 7 | 7 | 7 | 8 | | |
| South America Type | | | | | | 5 | | 9 | |
| T post | ||||
| Market | Eruope and north America | |||
| Surafce Treatment | Hot dipped galvanized/ Painting | |||
| Packing | Eruope and north America | |||
| Size | 0.95pounds/foot, 1.25pounds/foot, 1.33pounds/foot ,1.5pounds/foot | |||
